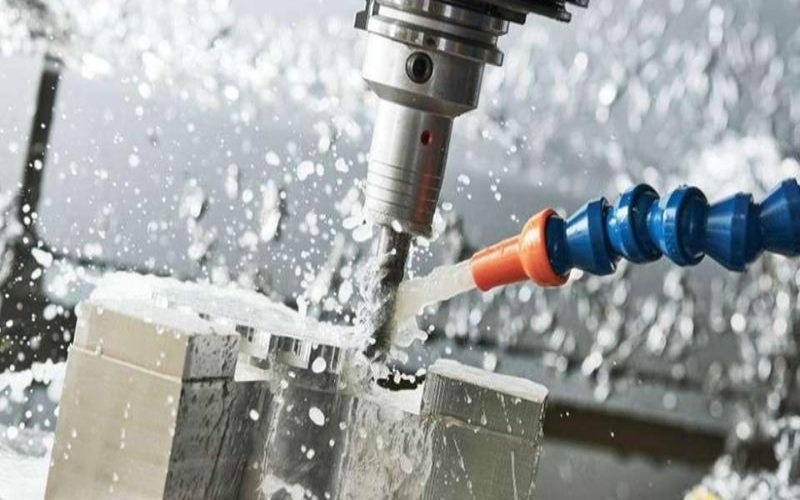

Proper coolant mixing is a critical yet often overlooked aspect of effective CNC machining. The right coolant-to-water ratio ensures optimal cooling, lubrication, and chip removal, extending tool life and improving machining accuracy. However, incorrect mixing may lead to tool wear, overheating, and poor surface finishes. Therefore, machinists must mix these fluids correctly for optimal performance.
This guide explores why proper mixing is essential, the tools and equipment needed, step-by-step instructions for calculating ratios, and tips for consistent mixtures. Whether you’re a seasoned machinist or a beginner, mastering these techniques will boost your machining efficiency and reduce operational costs.
Why is Correct Coolant Mixing Essential in Machining?
Coolant mixing in CNC machining service is common, as it helps improve the efficiency of the lubricating fluid. The practice also enhances the coolant’s general properties, reduces friction, minimizes heat generation, improves tool life, etc. That said, machinists must ensure proper mixing of this cooling agent, as it helps guarantee maximum functions.
Below are the key reasons for correct CNC coolant mixing:
- Optimized Lubrication and Cooling: Correctly mixed coolant ensures optimal heat dissipation and reduces friction during machining. Therefore, it helps prevent tool overheating and material deformation.
- Extended Tool Life: The right coolant mixture minimizes wear on cutting tools, extending their lifespan and reducing replacement costs.
- Improved Surface Finish: Proper mixing prevents improper lubrication, ensuring smoother surface finishes on machined parts and avoiding defects like burns or scratches.
- Corrosion Prevention: An accurate coolant-to-water ratio prevents rust and corrosion on machine components and workpieces, protecting your investment.
- Bacterial and Fungal Control: Incorrect mixing can cause the coolants to separate, causing a distinction between water, oil, and other additives. The water may lead to microbial growth, causing foul odors, degraded coolant performance, and potential health hazards.
- Cost Efficiency: Over-concentrated mixtures waste coolants and increase costs, while under-concentrated mixtures may lead to poor machining performance and frequent repairs.
- Environmental Compliance: Properly mixed coolant reduces the risk of environmental harm caused by improper disposal or coolant spills, ensuring regulatory compliance.
While coolant mixing is standard practice, machinists must ensure correct mixing to enhance productivity, protect equipment, and achieve consistent machining results.
Tools and Equipment Needed for Proper Mixing
Properly mixing CNC coolant requires specific tools and equipment to ensure accurate ratios and effective blending. Below are critical tools and equipment that help ensure proper mixing of the coolant or lubricating agents.
- Coolant Refractometer: A refractometer measures the concentration of coolant in the mixture, ensuring the correct ratio of coolant to water. It prevents over-concentration or under-concentration, which can affect machining performance.
- Mixing Unit or Proportioner: These devices automatically blend coolant and water at precise ratios. Therefore, it minimizes human error and ensures consistency across batches. They help save time and improve mixing efficiency.
- Dedicated Mixing Container: Using a clean, dedicated container ensures no cross-contamination with other fluids. However, machinists should use containers with measurement markings to simplify adding the right volumes of coolant and water.
- Stirring Tools or Agitators: Manual or mechanical agitators thoroughly ensure the coolant and water mix. Proper and thorough mixing prevents potential separation or uneven concentration, which could compromise coolant performance.
- Personal Protective Equipment (PPE): Safety gear, such as gloves, goggles, and aprons, protects machinists from chemical splashes and skin irritation while handling coolant concentrates.
These tools and equipment ensure consistent, safe, and effective coolant mixing, leading to better machining outcomes and equipment longevity.
Steps to Calculate the Coolant-to-water Ratio
Calculating the correct coolant-to-water ratio is essential for effective machining performance. It helps the machinists avoid overheating, corrosion, or tool wear. Below is a step-by-step guide.
- Check the Manufacturer’s Recommendation: Start by reviewing the coolant manufacturer’s guidelines. Most manufacturers often provide specific ratios (e.g., 5:1 or 10:1) on the coolant/water ratio for proper mixing and effective machining. However, ensure that you carefully read through the recommendation, as the mixing ratio often depends on the type of machining and material used.
- Determine the Total Volume Needed: Calculate the total volume of coolant mixture required based on your CNC machine’s tank capacity or the machining project’s requirements.
- Understand the Ratio: Ratios are typically expressed as coolant to water (e.g., 1:10 means 1 part coolant to 10 parts water). Divide the total volume by the sum of ratio parts to find the volume for each component. For example, for a 1:10 ratio in a 10-liter mixture, divide 10 by 11 (1+10) to get approximately 0.91 liters of coolant and 9.09 liters of water.
- Use a Refractometer for Accuracy: After mixing, test the concentration using a refractometer. Adjust the ratio if the concentration is too high or low.
- Add Coolant to Water: Always add coolant concentrate to water, not the other way around, to prevent improper mixing or foaming. Stir thoroughly after each addition.
- Document the Process: Record the ratio and steps used for future reference. This ensures consistency and reduces errors in subsequent mixes.
These steps ensure the right coolant concentration for optimal machining efficiency and tool longevity.
Risks of Improper Coolant Mixing
Improper mixing of CNC coolant can negatively affect machining performance, equipment lifespan, and overall productivity. Below are potential risks of improper coolant mixing.
Reduced Cooling Efficiency
An incorrect coolant-to-water ratio may lead to poor heat dissipation. For example, an overly diluted coolant cannot absorb heat effectively, causing overheating. Likewise, excessive concentration may form sticky residues that hinder cooling.
Corrosion of Equipment
If the coolant mixture is too weak, the protective properties are compromised, leading to rust and corrosion of machine components. Conversely, over-concentrated mixtures can leave a corrosive film, damaging surfaces over time.
Increased Tool Wear
Improper coolant ratios fail to provide adequate lubrication. Therefore, instead of reducing tool wear, they may even accelerate it, reducing cutting efficiency and increasing replacement costs.
Health Hazards for Operators
Poorly mixed coolant can result in excessive foaming or unpleasant odors. Similarly, over-concentrated coolant may emit fumes that cause respiratory issues or skin irritation.
Reduced Machining Precision
Incorrect mixtures can affect the coolant’s ability to flush chips and debris away from the cutting area, leading to poor surface finishes and dimensional inaccuracies in CNC machined parts.
Coolant mixing ensures safe operation, protects equipment, and maintains machining quality. Regular monitoring and adjustments are crucial to avoid these risks.
Tips for Achieving Consistent Mixtures Every Time
We already discussed the potential risks associated with a poor coolant mixture. Therefore, machinists must consistently achieve the correct coolant mixture for effective machining performance.
Below are seven practical tips for achieving consistent coolant mixtures.
Use a Refractometer
Regularly measure the coolant concentration with a refractometer. This device ensures you obtain precise ratios and helps maintain consistent coolant performance.
Follow Manufacturer Recommendations
Always adhere to the coolant manufacturer’s guidelines for mixing ratios. The manufacturer best understands their product. Therefore, it is best not to overlook their recommendations. The specifications are often tailored for optimal cooling, lubrication, and protection.
Invest in a Coolant Mixer
Consider investing in automated mixers. They help ensure accurate and consistent coolant-to-water ratios, eliminate human error, and streamline the mixing process.
Use Clean Water
Always mix the coolant with filtered or deionized water. Using hard water can cause scaling and reduce coolant effectiveness.
Mix Gradually
When mixing, add coolant concentrate into the water, not the other way around. This mixing strategy helps reduce or even prevent foaming or incomplete mixing. However, as you mix, stir thoroughly after adding each portion.
Monitor Coolant Reservoir Levels
Check the coolant reservoir regularly and top up with the appropriate mixture. Avoid diluting the mixture by directly adding water.
Perform Routine Coolant Maintenance
Periodically remove contaminants such as chips, oil, and debris from the coolant system. Clean systems prevent contamination that can affect mixture consistency.
Machinists must follow these tips to help maintain consistent coolant mixtures, ensuring long-lasting tool life, precision, and machining efficiency.
Conclusion
Correct coolant mixing is crucial for optimal machining performance and protection of valuable equipment. By using the right tools, following manufacturer recommendations, and adhering to best practices, machinists can ensure consistent mixtures that enhance tool longevity, improve cooling, and prevent costly downtime. Avoiding common mistakes and regularly maintaining the coolant system further ensures reliability and efficiency. With proper attention to coolant preparation, machinists can optimize their operations and achieve superior results in every project.
